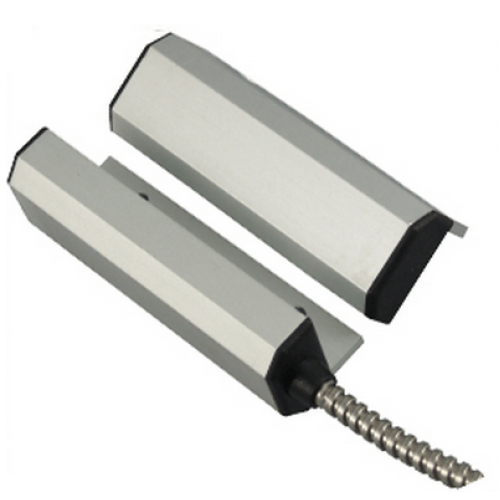

CQR GP001/AB/G2 Heavy Duty Aluminium Contact Grade 2

The GP001/AB/G2 is Heavy Duty Aluminium Door Contact Grade 2 are required to have a mechanical tamper and/or be potted/sealed. End of Line (EOL) resistors are an option but are not a requirement to meet Grade 2.

Main Features:

• Heavy Duty Angled Contact
• High quality alloy finish
• Pre-resistored (A,B)
• Other resitor value available
• 45cm Armoured cable lengths
• Size: 80 x 15 x 27mm

Product Specification:

• Connections: 8 Core x 7/0.2 Copper Cable
• Armoured Cable Legnth: 570mm
• Reed Switches: 1
• Pull-in Gap: 30mm (X) 20mm (Y)
• Material: Aluminimum/ABS
• Contact Size mm: 85 x 27 x 26
• Magnet Size mm: 85 x 27 x 26
• Contact Form: SPST form A
• Voltage Range: 12v DC
• Switching Current: 500mA @ 12Vdc
• Contact Material: Rhodium
• Temperature Range: -15° C to +40° C
• Tamper: Tamper Integrity Loop
• Colours: Brushed Aluminium
• Magnetic Interference Detection: N/A
• Standards: EN50131-2-6 Grade 2 Environmental Class: II
