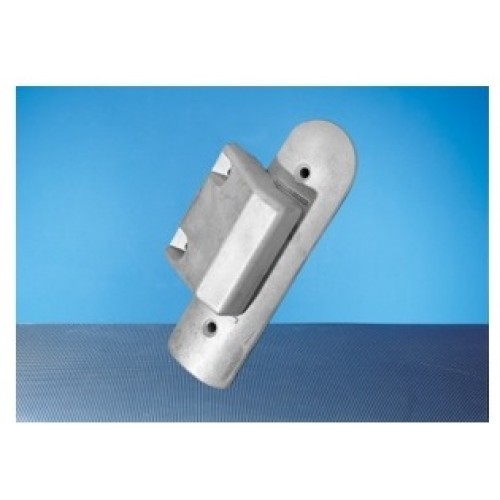

Elmdene 6RSC-GN 6 Wire Large Roller Shutter Contact with 1k / 1k Resistor (Green) Grade 2

Elmdene has an extensive range of high quality Surface Metal Magnetic Contacts.

Contacts with Integral Resistor: [1k / 1k Resistor (Green) - Suites for Honeywell Panels]

Specification:

Material: Aluminium
Colour: SILVER
Environmental Class: III
Cabled / Terminals: Cabled
Ferrous Materials: Yes
Operation Mode: 4 wire - DP 6 wire - FSL & DP
Single / Multiple Doors: Single or Multiple
Special Features: Stainless Steel Cable Protection
Spacers Available: N/A
Fixing: Screws
Operating Gap- Minimum Close (mm): 55
Resistors Fitted: 6 wire version
Number of Wires or Terminals: 4W or 6W
Stainless Steel Cable Protection: 50cm
Encapsulation: No Plotted
Length (mm): 175
Width (mm): 52
Depth (mm): 15
Magnet: 85 x 70 x 35
Cable Length(cm): 100
