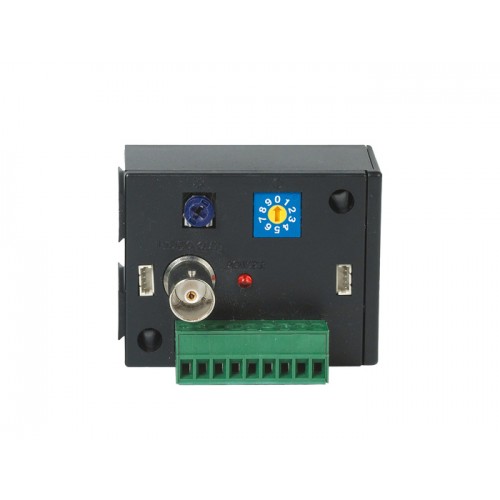

Genie’s “Smart Cabling” Active Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. Each Transmitter and Receiver is supplied with a DC12V Power supply as standard and can transmit and receive full motion composite video signals up to 900 metres in Colour and 1800 metres in Monochrome.


• Transmits Full Motion Colour or Monochrome Video Signal
• Monochrome video transmission up to 1800m or up to 900m in Colour
• Built in Transient Protection and Ground Lifting
• Modular Design
• Can be “Daisy Chained” Together by Removing the End Caps
• Frequency Compensation, Low, Medium, High
• DC12V Power to Camera From – Maximum 300mA
• Red LED: Power On / Off Indication
• Can Be “Daisy Chained” Together by Removing the End Caps
• Brightness Control
• Ten-position Distance Range Switch to Adjust Signal Strength
• DC12V Power Supplies Included, 500mA
