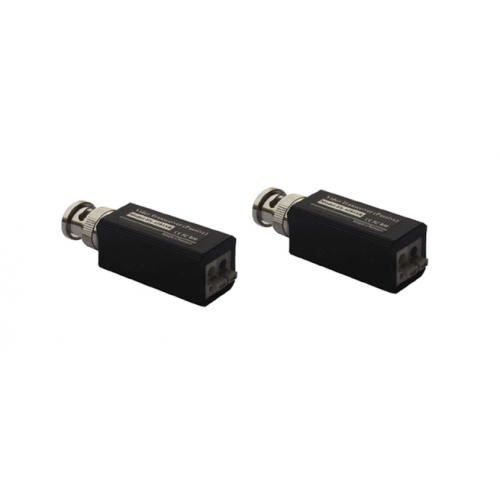

Haydon HAY-VB01 Passive Video Transceiver Pack of 2

• Single Channel Passive Video Transceiver (Tool-less Mini Balun)
• Colour video signal up to 1300ft (400m) Monochrome (B&W) up to 1950ft (600m) via UTP cat5e/6
• NTSC, PAL & SECAM video format compatible
• Real-Time Transmission
• No Power Required
• Reliable Screw less UTP Terminal Block
• Tool-less Installation Within Less Than 1 Minute
• Male BNC Connector
• Exceptional Interference Rejection
• Built-in TVS (Transient Voltage Suppressors) for Surge Protection
• Lightning Protection Design Grade: III
• 50 dB Crosstalk and Noise Immunity
• Compact Size For Ease of Installation
• ABS Plastic Housing

The Haydon HAY-VBO1 video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective. Unshielded Twisted Pair (UTP) cable. Base band (composite) signals of any type are supported.The Male BNC of HAY-VBO1 allows connection directly to the camera or DVR. Screw less terminal block allows tool-less connection of UTP cable output. Used in pairs, HAY-VBO1 eliminates costly and bulky coaxial cable, allowing live CCTV colour video signal up to 1300ft/400m. HAY-VB01 is also compatible with all the other HAYDON passive balun products for applications at distances up to 1300ft/400m by using HAYDONs active receiver distances of up to 2600ft/800m can be achieved.

The interference rejection and low emissions of the HAY-VBO1 allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable run. HAY-VBO1 has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensures quality video signals
