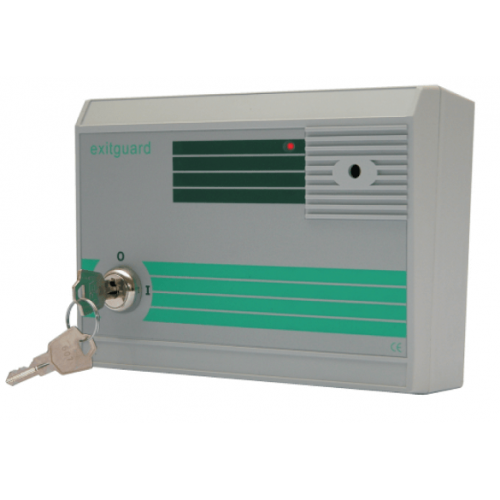

Hoyles EX105 is the ideal solution for security of fire exit doors in Supermarkets, Hotels, Restaurants, Warehouses, Leisure Centres and all types of public buildings. It satisfies the requirements of both fire and security officers. The Hoyles EX105 has an integral high power sounder which is activated when the door is opened to warn those in the vicinity that security has been breached.





The Hoyles EX105 exitguard uses a two position keyswitch for setting the alarm. The Hoyles EX105 integral sounder has two selectable tones to enable the alarm condition to be distinguished from any other alarms in the vicinity. These are link selectable during installation. The alarm can be silenced and reset using the keyswitch or the EXITGUARD can rearm automatically after a preset delay once the door has been closed. The preset delay is adjustable up to 90 seconds.  A Door Open Too Long (DOTL) delay of 15 seconds can be set during installation as can a chime facility.





An auto sounder reduction feature is incorporated to attenuate the sounder to a periodic bleep every 30 seconds and reduce the annoyance caused if the key holder is not available. However, the sounder will re-start if the door is opened again.The tamper feature also uses a sounder reduction feature via the keyswitch and is configured in such a way that the alarm can be set even if tamper security has been breached.





The Hoyles EX105 is 12vdc powered for use where the protected door may be opened frequently. The Hoyles EX105 can also be used as part of a system where it is necessary to interface with other equipment such as intruder alarms or access control systems. There is an alarm output relay for connection to  remote systems. This version cannot be powered from batteries.

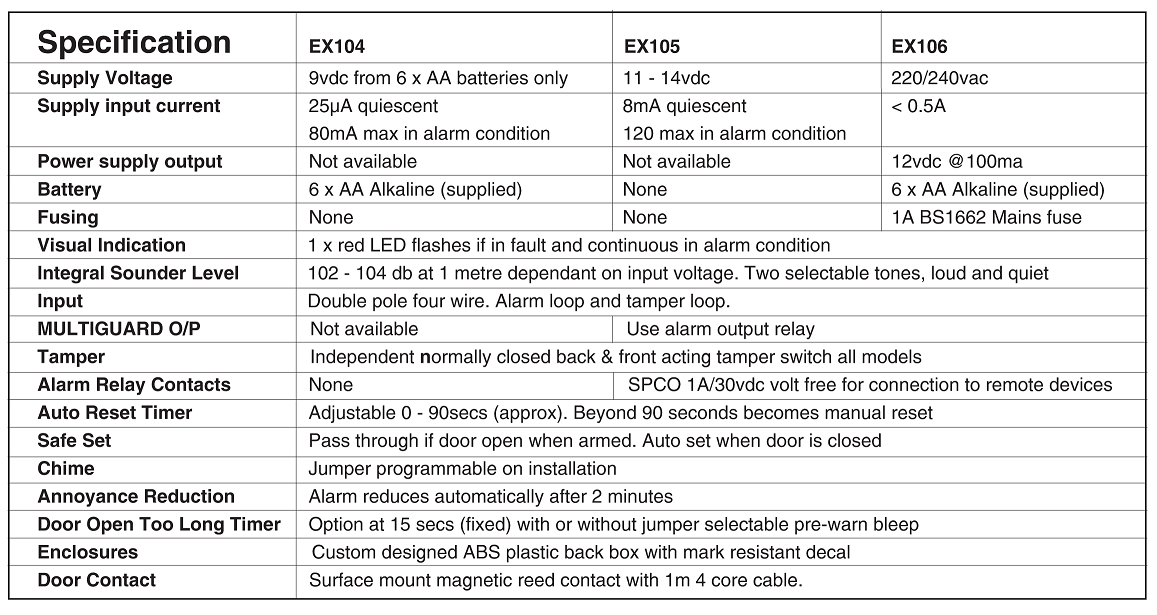

Hoyles EX105 Specification
