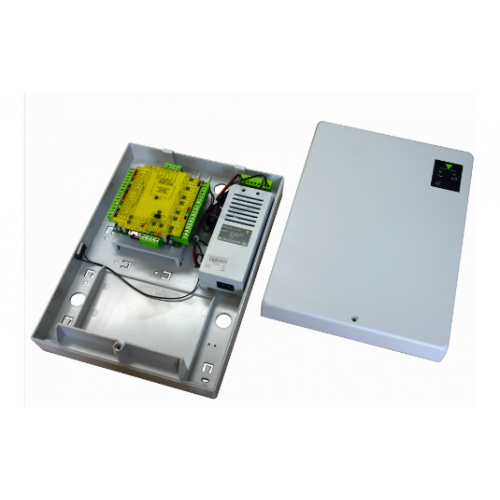

Paxton 682-531 Net2 Plus Access Control Unit with 2A Power Supply Plastic Cabinet

Available to professional installers only

Paxton Net2 is a PC based networked access control system, which gives users the advantages of event reporting, central control and flexible control over users access. Each Net2 control unit can be run independently or as part of a network making its own decisions and remembering events.

The Net2 plus 682-531 control unit links to the main administration PC using an RJ45-plug into a standard TCP/IP Ethernet network. This considerably increases the adaptability of installation options on premises that have LAN/WAN networks. The Net2 plus access control unit also has a RS485 connection. This way it can be connected to other Net2 classic or Net2 plus control units using a dedicated CAT5 cable.

One Paxton Net2 plus control unit can be the network interface to the local area network (LAN) and also run a wired RS485 daisy chain of other Net2 classic or Net2 plus units or, removing the need for an TCP/IP to RS485 independent converter.

Main Feature

• One door networkable ACU boxed in a plastic housing, includes a 12V 2A Power supply
• Plug into a network TCP/IP using a standard RJ45 plug
• Net2 plus ACU can replace a TCP/IP convertor
• Can also connect using RS485
• Net2 nano,Net2 plus, Net2 classic control units can be combined on a site
• Clear diagnostic LED's
• Easily upgraded
• Use Paxton Access or third party readers
