Scantronic I-SD02 Plug on PSTN Digicom

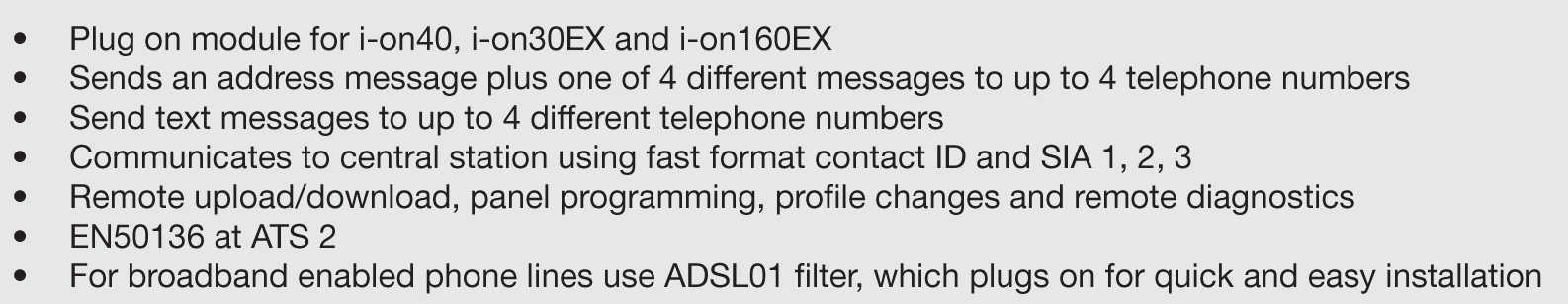

The Scantronic i-sd02 module is for use with the i-on40, i-on30EX/D and i-on160EX intruder alarm panels. The Scantronic i-sd02 permits these control units to report alarm conditions over the public switched telephone network (PSTN) using either standard alarm signalling protocols, recorded speech messages, or SMS (Short Message Service) texts to mobile telephones by way of the PSTN.

The i-sd02 module allows connection to the public sitched telephone network PSTN. This clever module allows both alarm signalling and speech messaging. When fitted to the intruder alarm control unit speech messages can be configured to be up to 30s long (one 10s home message and four consecutive alarm messages of 5s each). Alarm signalling protocols supported: Scancom Fast Format, Contact ID, SIA1, SIA2, SIA3, Extended SIA3.

The i-sd02 module meets the performance criteria of D2, M2, S1, I0, T2 and A0 as described in EN50136-1-1 subject to network conditions. ATS rating : ATS 2 (EN50131-1) REN : 1 This product can share a PSTN line with other telephony or fax equipment.
