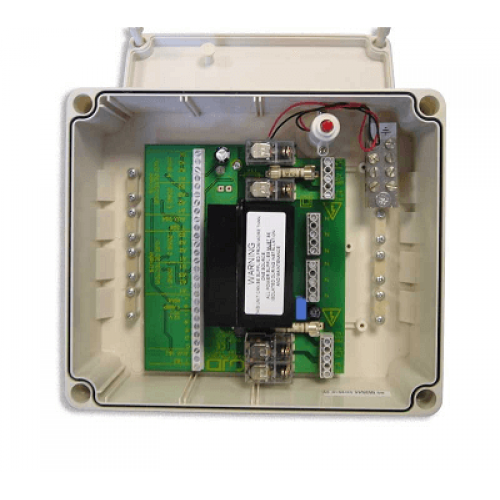

GJD 4 Zone Expansion Unit GJD040

4 Zone Expansion Unit 230VAC light switching unit with 1 Amp 12VDC p/s, Designed to work with the GJD DygiZone digital lighting controller and the GJD range of external PIR detectors, the 4 Zone Expansion Unit greatly simplifies installation time and cost.

The GJD040 4 Zone Expansion unit incorporates an energy efficient switched mode power supply and can control up to four individual lighting circuits each with 1500W resistive load.

GJD040 Specification:

Supply: 2 x 230 VAC 50HZ via RCD, MCB and 13 amp Fused spurs.
Lighting Outputs: 4 x 230 VAC 50HZ 1500 watts maximum
Provides: 12VDC at 1A
'T' Outputs: (1 & 2 and 3 & 4) 5mA +ve suitable for driving base of NPN Transistor
Aux Outputs: (1 & 2 and 3 & 4) 50mA -ve suitable for driving low power sounders
Cable Guide: 1.5mm twin & earth for mains cable
GJD Detectors: 200m - 7/0.2mm - 4 to 8 core 400m - 16/02mm - 4 to 8 core
Touch Controls: 200m - 7/0.2mm - 6 core screened (Max. 200m from first touch control to last Expansion Unit)
Mounting: Install indoors in a clean dry location on a secure flat surface
Operating Temp: -10°C to + 50°C. Conformally coated electronics for increased stability
