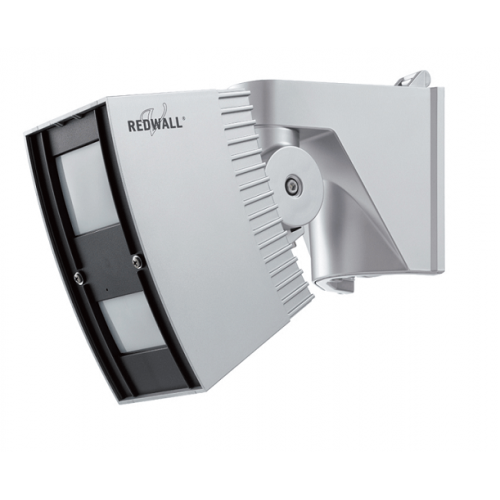

The all new, feature rich, Optex Redwal SIP-5030 sensor is specifically designed for use in small to medium sized external areas. Rugged and durable construction and reliable operation make them ideal for use as motion sensors in remote monitored CCTV applications. The areas of coverage have been designed to match common fixed camera and lens combinations.





The all-new design includes improved mounting height options of 4M down to 2.3M, a 3 axis-accelerometer to warn of subversion reorientation, active infra anti-mask, thermo sensor and light sensor for improved capture, high grade mirrored optical array with triple dual pyroelectric sensors and Double Conductive Shielding to resist unwanted spurious false alarms plus high, medium and low sensitivity settings results in a comprehensive specification sensor for the small to medium installation.





The Optex SIP-5030 comes with a rugged polycarbonate housing which provides a stable environment for the detection electronics. All head adjustments are tamper protected to prevent sensors being re-aligned by unauthorised personnel or obscured by bagging etc.





The back plate mounting is cast alloy and permits direct rear cable entry or armoured copex. The Sensor comes complete with all fixings and incorporates integral blanking plates for dramatically improved false reduction.





Optex SIP-5030 Redwall Features





Options



SIP-3020 - 30 x 20m (100 x 65ft.)

SIP-4010 – 40 x 10 m (130 x 33 ft.)

SIP-404 – 40 x 4 m (130 x 13 ft)

Accessories

AVF-1 Area View Finder

SIP-HU Heater Unit

SIP-MINI HOOD Sun/Snow Shield

OPM-WT Audible Walk Tester
