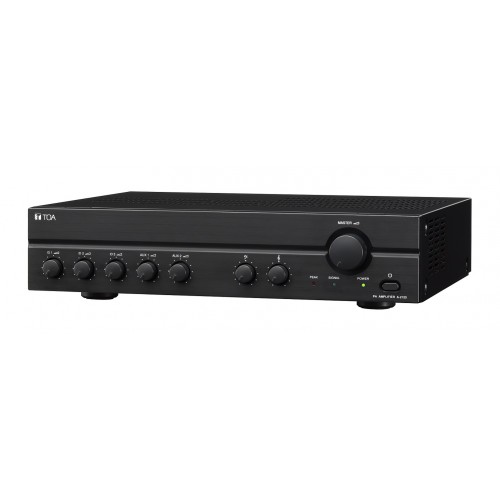

TOA A-2060 60w Budget Amp

The TOA A-2060 is a cost effective 60W Budget Amplifier which is ideal for restaurants, schools and meeting rooms. The TOA has an independendent volume input, master volume controls, 2 auxiliary inputs, 1 recording output and the TOA A-2060 uses balanced microphone inputs to help reduce external noise.

For a rough guide to calculating which TOA amplifier required, the total power of all of the speakers used needs to be calculated and then add 10% for cable loss and expansion. The Amplifier power must meet or exceed this number.

TOA A-2060 60w Budget Amp Specification

Power Source 220 - 240V AC or 24V DC
Rated Output 60W
Power Consumption 72W (EN60065), 150W(AC operation at rated output, 4A (DC operation at rated output)
Frequency Response 50 - 20,000Hz (+/- 3 dB)
Distortion Under 1% at 1kHz,1/3 rated power
Input MIC 1: -60db 600Ω,electronically balanced, 5-P Din type. MIC 2,3:-60db 600Ω,electronically balanced, 5-P phone jack. AUX 1,2: -20dB, 10kΩ, unblanced, RCA pin jack. Mute: Contact Pin 4 - 5 Closure input (for MIC 1)
Output SPEAKER OUT:Balanced (floating)
HIGH IMPEDANCE:170W (100V)
LOW IMPEDANCE: 4Ω (15.5V)
REC. OUT: Odb, 600Ω unbalanced, RCA pin jack
Phnatom Powe DC + 21V (MIC 1)
S/N Ratio Over 60dB
Tone Control Bass: +/- 10 dB at 100k Hz Treble: +/- 10 dB at 10k Hz
Muting MIC1: Mutes other signals by 0 - 30 dB attenuation
Indicator Power signal, peak
Finish Panel: ABS resin, black/Case: Steel plate, black
Dimensions 420 (W) x 100.9 (H) x 280.2 (D) mm
