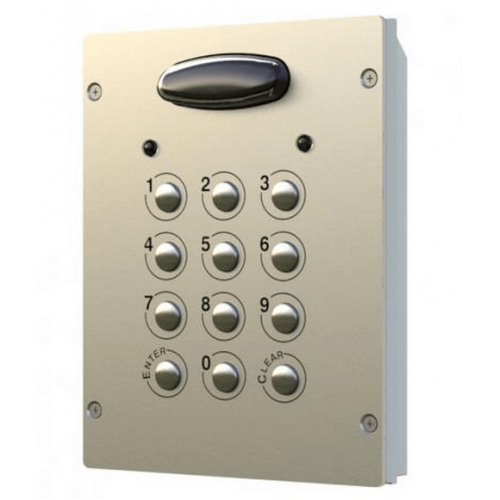

VX8800, Videx, 8000 Series Codelock Module 2 Codes, 2 Relay Outputs with Push to Exit Button

8000 series coded access module. It has 100 codes and 2 relay outputs with PTE inputs. It can be integrated in to all 8000 series audio and video modular systems. Requires housing and psu (12-24V ac or dc).

Specifications:

• Input voltage: 12-24V AC or DC
• Power consumption: 2VA
• Storage capacity: 3 codes
• Code length: 4 to 8 digit
• Relay time: 1 to 99 seconds or latching
• Relays: 2 (C, NO, NC)
• Relay contacts: 24Vac/dc @ 3A
• Push to exit inputs: 2

​
