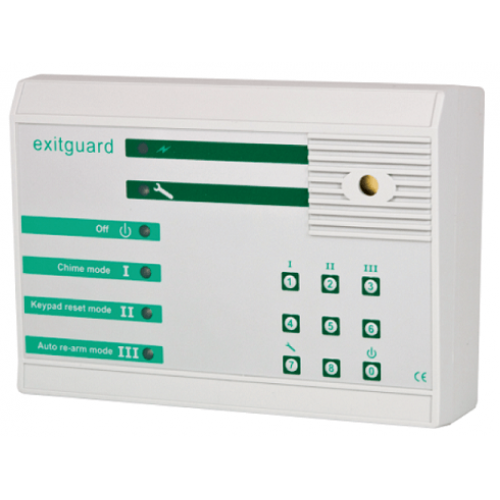

The Hoyles EX206 Exitguard is the ideal solution for security of fire exit doors in Supermarkets, Hotels, Restaurants, Warehouses, Leisure Centres and all types of public buildings. It satisfies the requirements of both fire and security officers. An integral high power sounder is activated when the door is opened to warn those in the vicinity that security has been breached.





The Hoyles EX206 is 240vac mains powered where the protected door may be opened frequently or the sounder may need to sound for long periods. There is a logic output signal for connection to a MULTIGUARD and a volt free relay contact for alarm condition. The Hoyles EX206 is also supplied with 6 x AA  alkaline batteries for standby

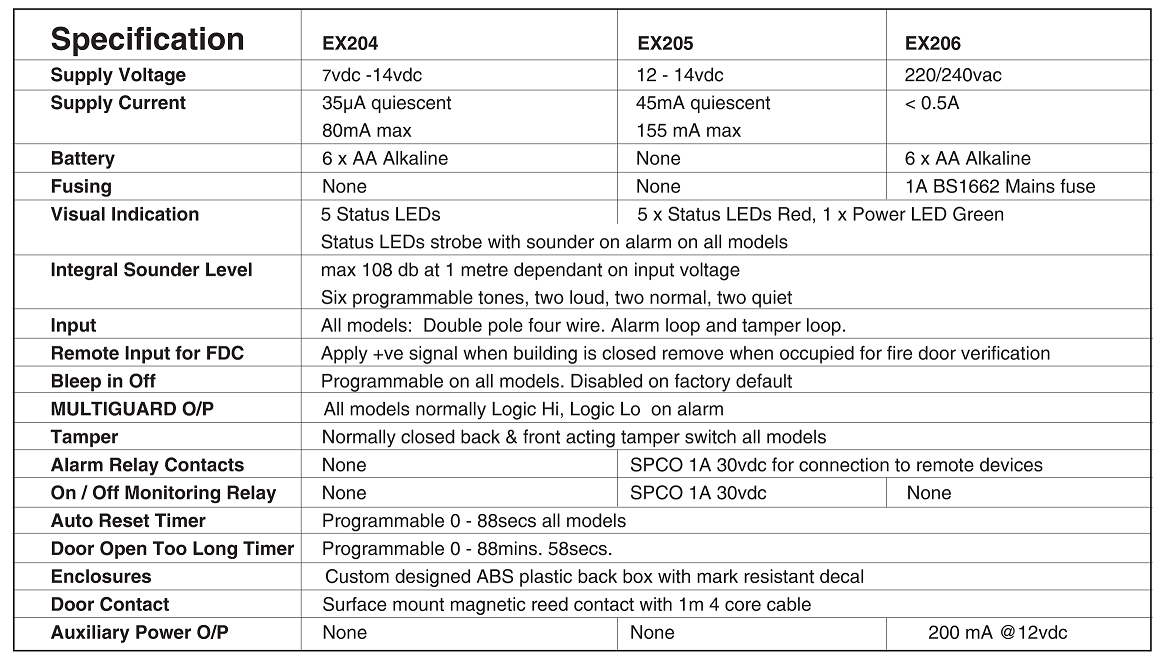

Hoyles EX206 Specification
