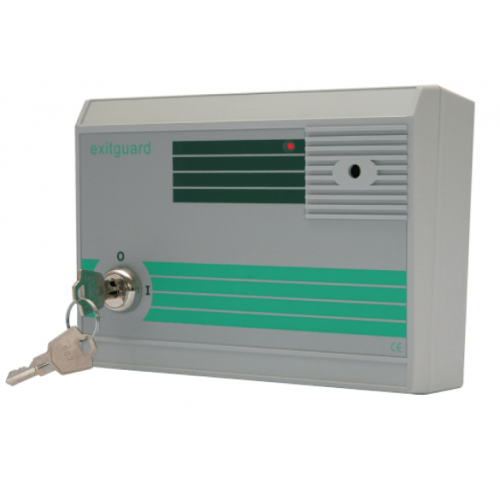

Hoyles EX104 is the ideal solution for security of fire exit doors in Supermarkets, Hotels, Restaurants, Warehouses, Leisure Centres and all types of public buildings. It satisfies the requirements of both fire and security officers. The Hoyles has an integral high power sounder which is activated when the door is opened to warn those in the vicinity that security has been breached.





The Hoyles EX104 exitguard uses a two position keyswitch for setting the alarm. The Hoyles EX104 integral sounder has two selectable tones to enable the alarm condition to be distinguished from any other alarms in the vicinity. These are link selectable during installation. The alarm can be silenced and reset using the keyswitch or the EXITGUARD can rearm automatically after a preset delay once the door has been closed. The preset delay is adjustable up to 90 seconds.  A Door Open Too Long (DOTL) delay of 15 seconds can be set during installation as can a chime facility.





An auto sounder reduction feature is incorporated to attenuate the sounder to a periodic bleep every 30 seconds and reduce the annoyance caused if the key holder is not available. However, the sounder will re-start if the door is opened again.The tamper feature also uses a sounder reduction feature via the keyswitch and is configured in such a way that the alarm can be set even if tamper security has been breached.





The Hoyles EX104 is battery powered for use where a separate supply of power is not available and the protected door is opened infrequently. Depending on usage the battery life can be up to 5 years. A battery condition monitor will warn of impending battery failure. The battery is tested each time the Hoyles EX104 Exitguard is set and emits a warning bleep if the batteries are below par. The Hoyles EX104 will continue to function for at least two two weeks after a battery fault indication. The Hoyles EX104 is powered from 6 readily available AA long life Alkaline batteries. (Supplied)

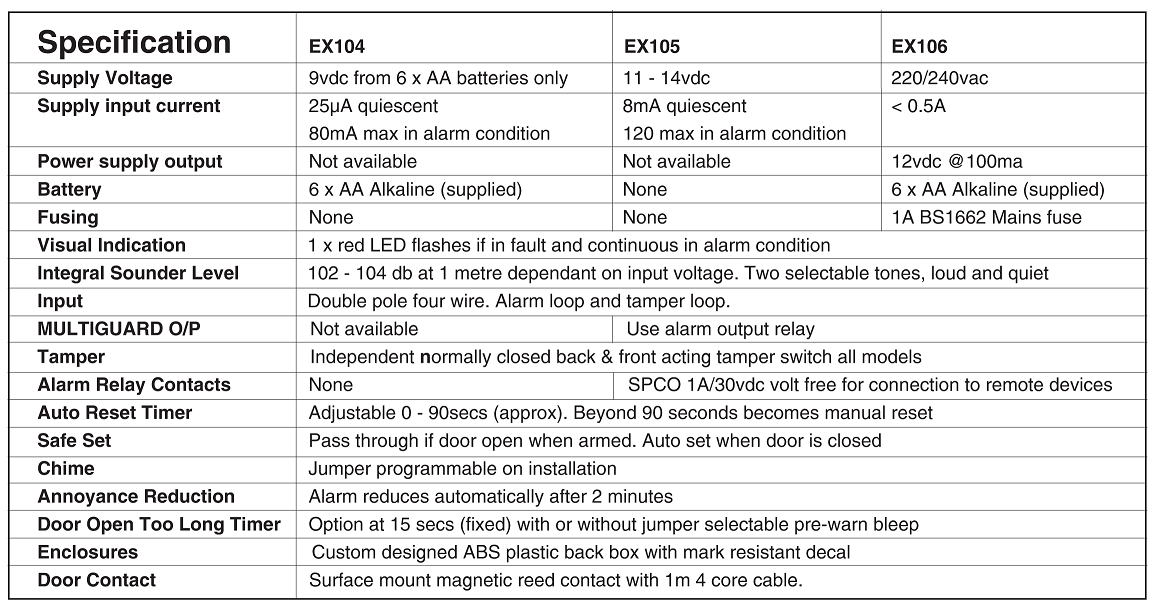

Hoyles EX104 Specification
