Trimec 110152-010 ES150 Series Rim Release
Trimec ES150 Series 12V Fail Secure Surface Rim Strike Weather Resistant 110152-010

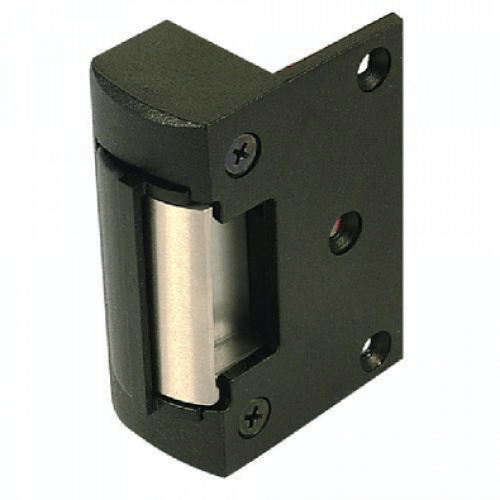

ES150 is a surface mounted electric strike suitable for use with rim or surface type dead latches. This strike is easy to install and can be simply controlled by a keypad, keyswitch or integrated into any access control system.
ES150 offers high levels of security and features usually provided by more expensive electric locking solutions. The electric strike can be easily installed on steel and wooden door frames. A weather resistant version is also available for exterior applications.
Key Features
Fail safe/fail secure changeable on site
Easy installation suitable for steel and wooden door frames
Stainless steel striker for extra strength and durability
Available in 12 or 24Vdc
Solenoid rated for continuous use
IP56 weather resistant version available
Tricare 5 Year Warranty
Applications
Surface or rim mounted applications
Suitable for use with all access control systems
Exposed areas (weather resistant model only)
Standards and Compliance
CE Approved
C-Tick Certified
Holding Force
680kg Static Strength Rating
Endurance
Cycle tested to 1,000,000 operations
Environment
Operational temperature range - 20°C to +60°C
Weather resistant construction available (IP56)
Body
Solid Stainless Steel Construction
Keeper
Stainless Steel
Latch
Suitable for 15mm latchbolt with 3mm door gap
Specification Statement
The electric strike must be suitable for surface mount applications for use with rim or surface mount door locks. Where Power To Lock and Power To Open functions may be required in the same building, an individual strike is interchangeable from either "Power to Lock" or "Power to Open" on site.
The electric strike should not consume current greater than 243mA @ 12Vdc or 187mA @ 24Vdc. Certifications must include CE and C-Tick.
The strike should be tested to 1 million operations and have a minimum holding force not less than 680kg.
